2SD2138APA

In Stock: 7,557

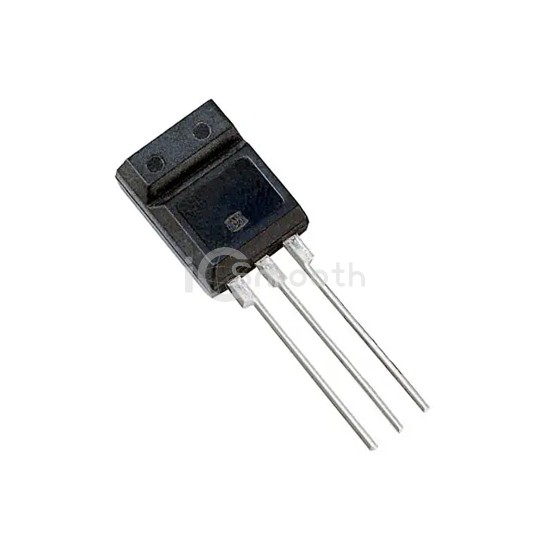

2SD2138APA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD2138APA Panasonic Electronic Components
2SD2138APA

Panasonic Electronic Components

TRANS NPN DARL 80V 2A MT-4

2SD2138APA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN DARL 80V 2A MT-4. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 2 A.

Datasheet Request a Quote

In Stock: 7,557

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)2 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 8mA, 2A
Current - Collector Cutoff (Max)100µA
DC Current Gain (hFE) (Min) @ Ic, Vce4000 @ 2A, 4V
Power - Max15 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-4-A1
