2SD21360QA

In Stock: 9,041

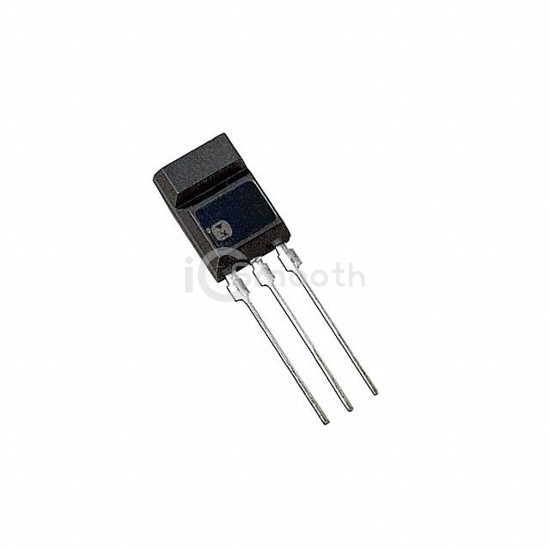

2SD21360QA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD21360QA Panasonic Electronic Components
2SD21360QA

Panasonic Electronic Components

TRANS NPN 60V 3A MT-3

2SD21360QA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 60V 3A MT-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 9,041

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic1.2V @ 375mA, 3A
Current - Collector Cutoff (Max)300µA
DC Current Gain (hFE) (Min) @ Ic, Vce70 @ 1A, 4V
Power - Max1.5 W
Frequency - Transition220MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-3-A1
