2SD20640S

In Stock: 3,139

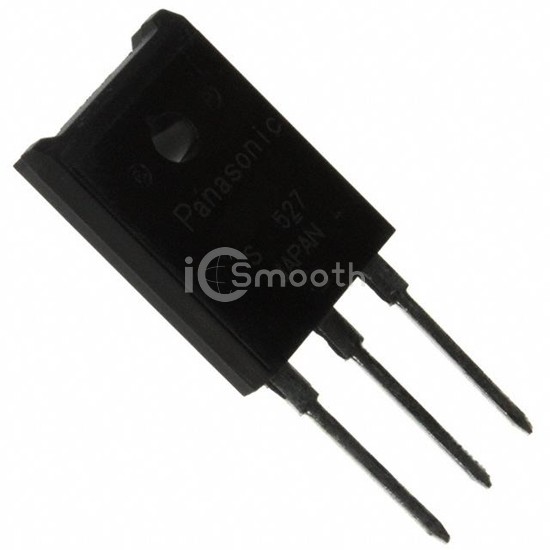

2SD20640S - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD20640S Panasonic Electronic Components
2SD20640S

Panasonic Electronic Components

TRANS NPN 120V 6A TOP-3F

2SD20640S is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 120V 6A TOP-3F. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F, current - collector (ic) (max) 6 A.

Datasheet Request a Quote

In Stock: 3,139

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)6 A
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic2V @ 400mA, 4A
Current - Collector Cutoff (Max)50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 1A, 5V
Power - Max3 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
