2SD19960TA

In Stock: 8,510

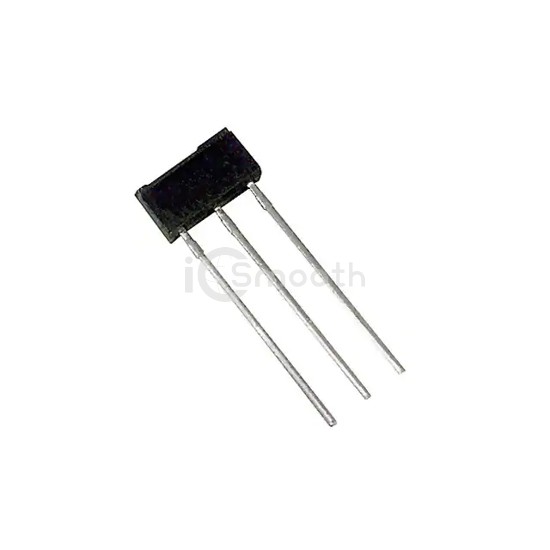

2SD19960TA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD19960TA Panasonic Electronic Components
2SD19960TA

Panasonic Electronic Components

TRANS NPN 20V 0.5A MT-1

2SD19960TA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 20V 0.5A MT-1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 8,510

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic400mV @ 20mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 500mA, 2V
Power - Max600 mW
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-1-A1
