2SD14500SA

In Stock: 6,216

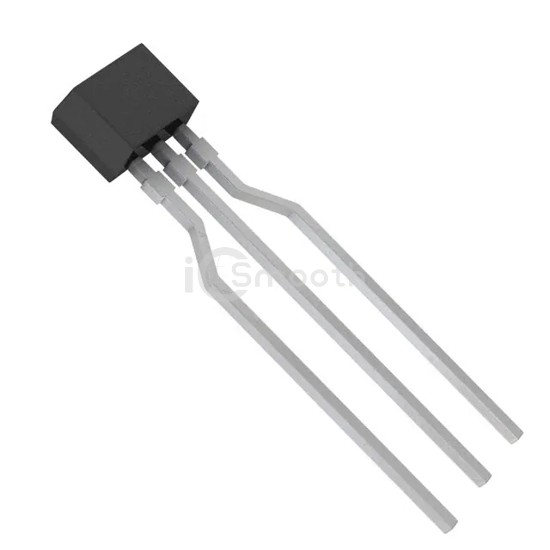

2SD14500SA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD14500SA Panasonic Electronic Components
2SD14500SA

Panasonic Electronic Components

TRANS NPN 20V 0.5A NS-B1

2SD14500SA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 20V 0.5A NS-B1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 6,216

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic400mV @ 20mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 500mA, 2V
Power - Max300 mW
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageNS-B1
