2SD09660R

In Stock: 2,233

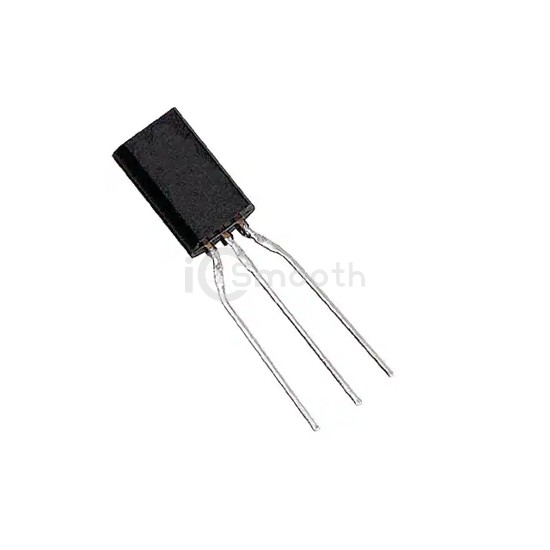

2SD09660R - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD09660R Panasonic Electronic Components
2SD09660R

Panasonic Electronic Components

TRANS NPN 20V 5A TO92L-A1

2SD09660R is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 20V 5A TO92L-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 2,233

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic1V @ 100mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce340 @ 500mA, 2V
Power - Max1 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L-A1
