2SD0946B

In Stock: 3,847

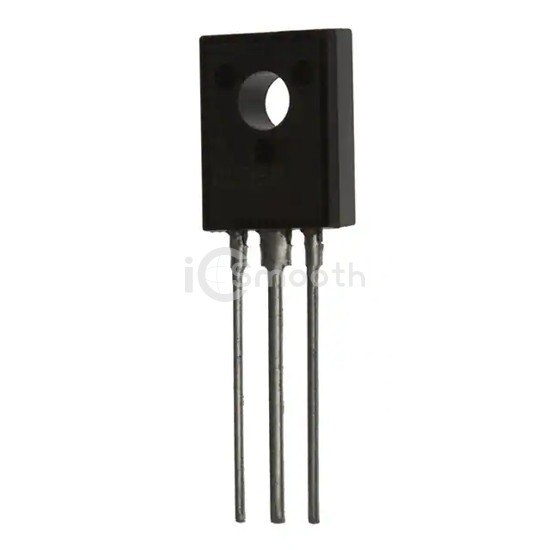

2SD0946B - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD0946B Panasonic Electronic Components
2SD0946B

Panasonic Electronic Components

TRANS NPN DARL 80V 1A TO126B-A1

2SD0946B is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN DARL 80V 1A TO126B-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 3,847

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic1.8V @ 1mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce4000 @ 1A, 10V
Power - Max1.2 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
