2SC4960

In Stock: 7,525

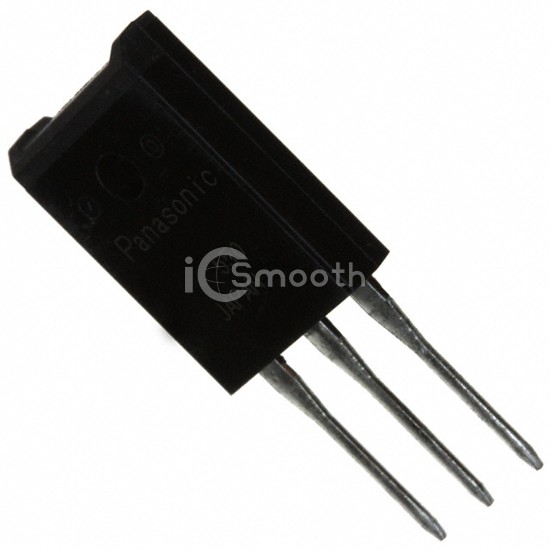

2SC4960 - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC4960 Panasonic Electronic Components
2SC4960

Panasonic Electronic Components

TRANS NPN 800V 1A TOP-3F

2SC4960 is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 800V 1A TOP-3F. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 7,525

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)800 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 40mA, 200mA
Current - Collector Cutoff (Max)50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce3 @ 500mA, 5V
Power - Max3 W
Frequency - Transition4MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
