2SC3974

In Stock: 2,740

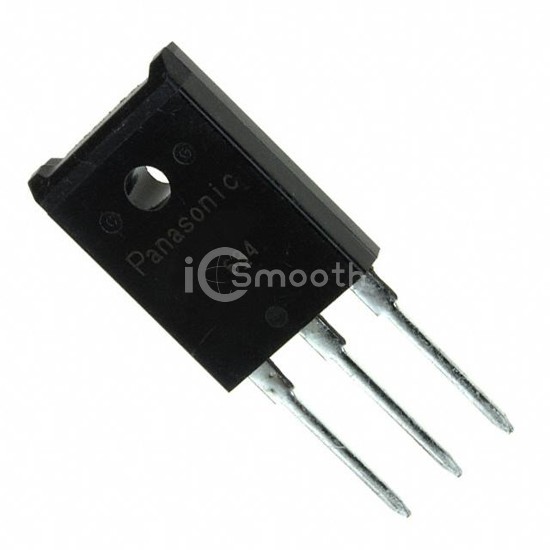

2SC3974 - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC3974 Panasonic Electronic Components
2SC3974

Panasonic Electronic Components

TRANS NPN 500V 7A TOP-3F

2SC3974 is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 500V 7A TOP-3F. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F, current - collector (ic) (max) 7 A.

Datasheet Request a Quote

In Stock: 2,740

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)7 A
Voltage - Collector Emitter Breakdown (Max)500 V
Vce Saturation (Max) @ Ib, Ic1V @ 800mA, 4A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce8 @ 4A, 5V
Power - Max3 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
