2SC3526H

In Stock: 6,575

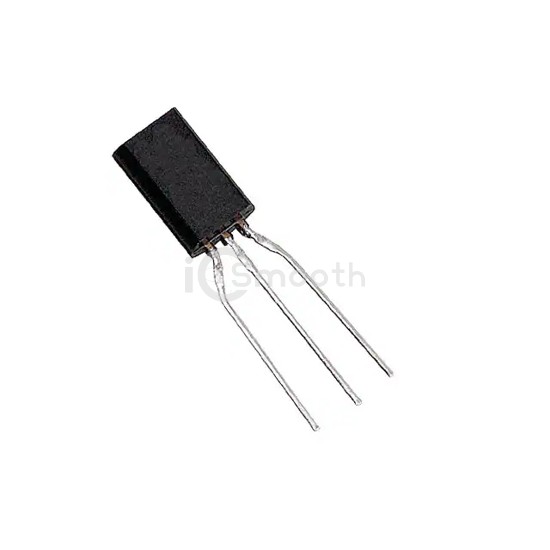

2SC3526H - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC3526H Panasonic Electronic Components
2SC3526H

Panasonic Electronic Components

TRANS NPN 50V 0.15A TO92L-A1

2SC3526H is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 50V 0.15A TO92L-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 150 mA.

Datasheet Request a Quote

In Stock: 6,575

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)150 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic500mV @ 15mA, 150mA
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 100mA, 5V
Power - Max1 W
Frequency - Transition300MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L-A1
