2SC3506

In Stock: 8,516

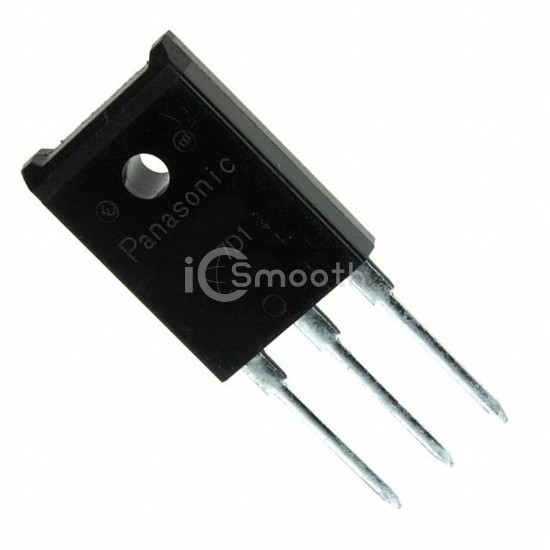

2SC3506 - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC3506 Panasonic Electronic Components
2SC3506

Panasonic Electronic Components

TRANS NPN 800V 3A TOP-3F

2SC3506 is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 800V 3A TOP-3F. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 8,516

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)800 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 400mA, 2A
Current - Collector Cutoff (Max)50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce6 @ 2A, 5V
Power - Max3 W
Frequency - Transition4MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
