2SC3063

In Stock: 1,904

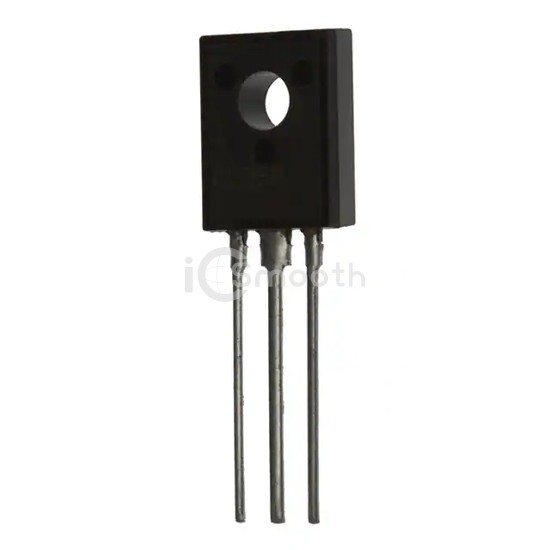

2SC3063 - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC3063 Panasonic Electronic Components
2SC3063

Panasonic Electronic Components

TRANS NPN 300V 0.1A TO126B-A1

2SC3063 is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 300V 0.1A TO126B-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 1,904

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)300 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 3mA, 30mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5mA, 50V
Power - Max1.2 W
Frequency - Transition140MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
