2SC2258

In Stock: 4,575

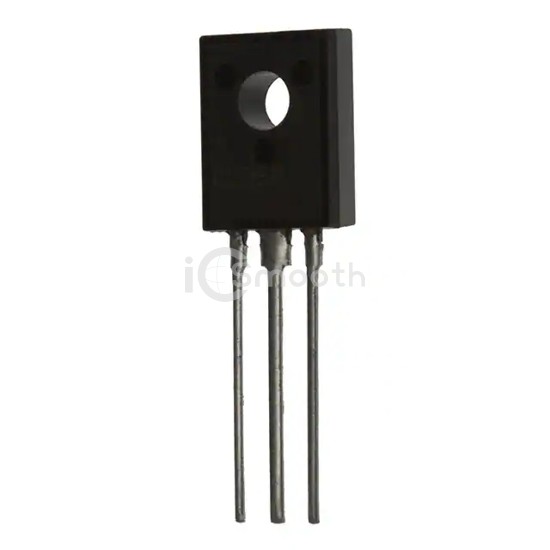

2SC2258 - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC2258 Panasonic Electronic Components
2SC2258

Panasonic Electronic Components

TRANS NPN 250V 0.1A TO126B-A1

2SC2258 is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 250V 0.1A TO126B-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 4,575

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)250 V
Vce Saturation (Max) @ Ib, Ic1.2V @ 5mA, 50mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 40mA, 20V
Power - Max4 W
Frequency - Transition100MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
