2SC15730Q

In Stock: 1,106

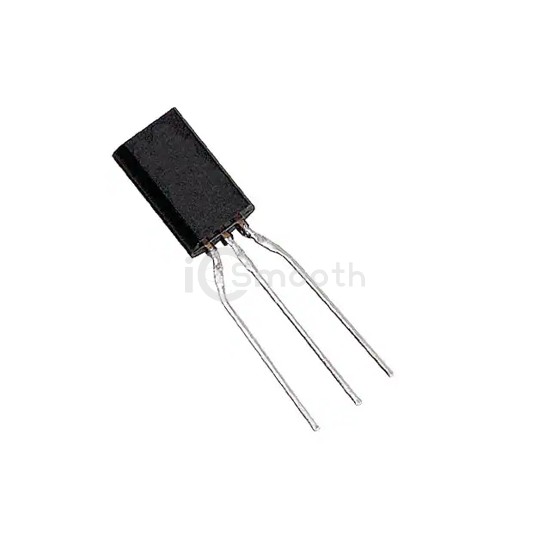

2SC15730Q - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC15730Q Panasonic Electronic Components
2SC15730Q

Panasonic Electronic Components

TRANS NPN 200V 0.07A TO92L-A1

2SC15730Q is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 200V 0.07A TO92L-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 70 mA.

Datasheet Request a Quote

In Stock: 1,106

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)70 mA
Voltage - Collector Emitter Breakdown (Max)200 V
Vce Saturation (Max) @ Ib, Ic1.2V @ 5mA, 50mA
Current - Collector Cutoff (Max)2µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Power - Max1 W
Frequency - Transition80MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L-A1
