2SC15680R

In Stock: 1,057

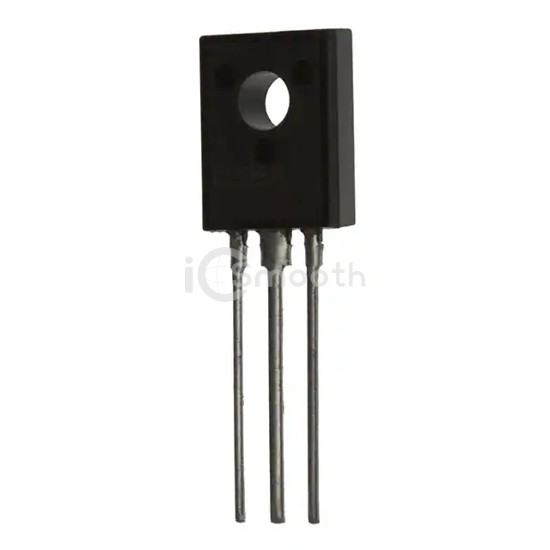

2SC15680R - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC15680R Panasonic Electronic Components
2SC15680R

Panasonic Electronic Components

TRANS NPN 18V 1A TO126B-A1

2SC15680R is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 18V 1A TO126B-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 1,057

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)18 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 1A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 500mA, 2V
Power - Max1.2 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
