2SC1567AR

In Stock: 3,985

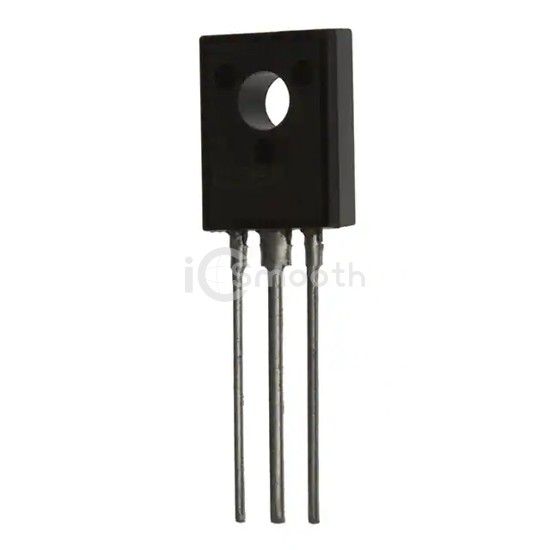

2SC1567AR - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC1567AR Panasonic Electronic Components
2SC1567AR

Panasonic Electronic Components

TRANS NPN 120V 0.5A TO126B-A1

2SC1567AR is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 120V 0.5A TO126B-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 3,985

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 150mA, 10V
Power - Max1.2 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126B-A1
