2SC15090S

In Stock: 1,162

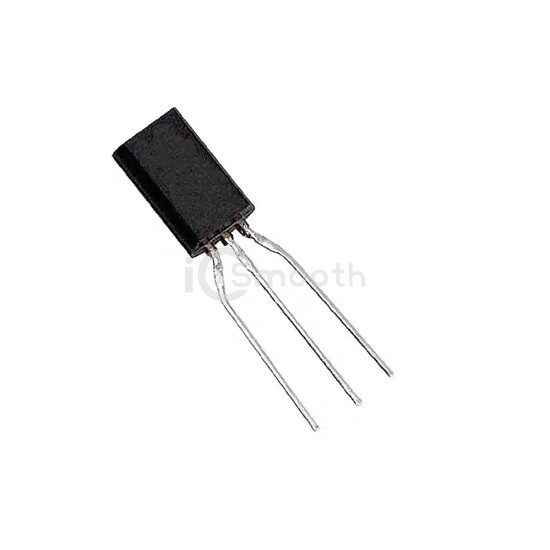

2SC15090S - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SC15090S Panasonic Electronic Components
2SC15090S

Panasonic Electronic Components

TRANS NPN 80V 0.5A TO92L-A1

2SC15090S is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 80V 0.5A TO92L-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 1,162

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic400mV @ 30mA, 300mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce185 @ 150mA, 10V
Power - Max750 mW
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L-A1
