2SB15920RA

In Stock: 5,596

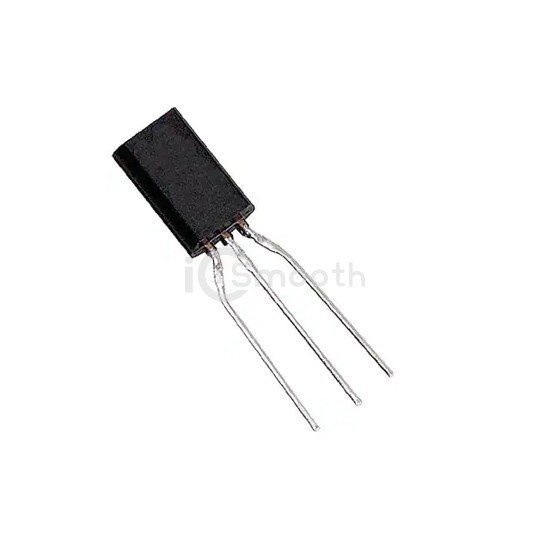

2SB15920RA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SB15920RA Panasonic Electronic Components
2SB15920RA

Panasonic Electronic Components

TRANS PNP 25V 3A TO92NL-A1

2SB15920RA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS PNP 25V 3A TO92NL-A1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 5,596

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)25 V
Vce Saturation (Max) @ Ib, Ic220mV @ 25mA, 1.4A
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 1.4A, 2V
Power - Max1 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92NL-A1
