2SB11560P

In Stock: 5,083
2SB11560P - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SB11560P Panasonic Electronic Components
2SB11560P

Panasonic Electronic Components

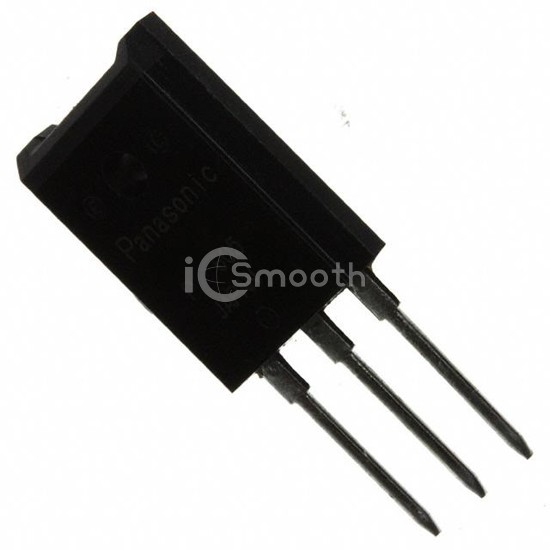

TRANS PNP 80V 20A TOP-3F

2SB11560P is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS PNP 80V 20A TOP-3F. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TOP-3F, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 5,083

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 2A, 20A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 3A, 2V
Power - Max3 W
Frequency - Transition30MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTOP-3F
Supplier Device PackageTOP-3F-A1
