2SB09560RL

In Stock: 4,902
2SB09560RL - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SB09560RL Panasonic Electronic Components
2SB09560RL

Panasonic Electronic Components

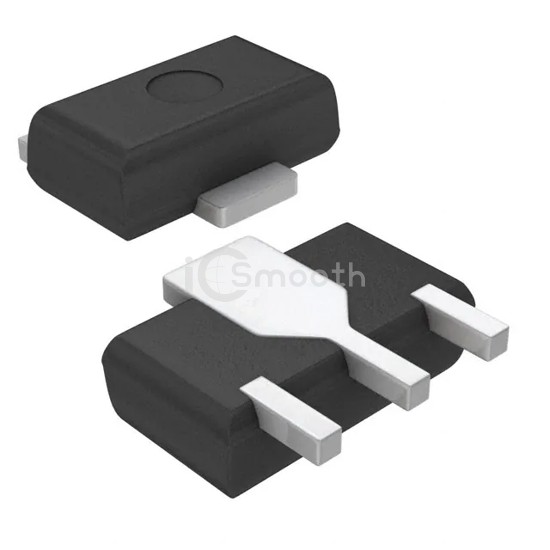

TRANS PNP 20V 1A MINIP3-F1

2SB09560RL is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS PNP 20V 1A MINIP3-F1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 4,902

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 1A
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 500mA, 2V
Power - Max1 W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageMiniP3-F1
