2SA16740SA

In Stock: 4,789

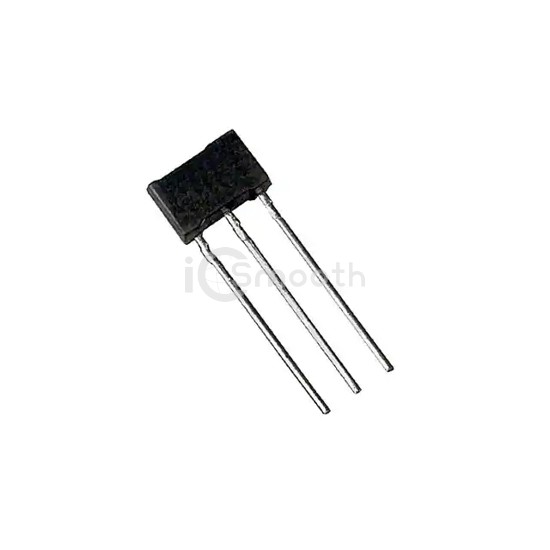

2SA16740SA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SA16740SA Panasonic Electronic Components
2SA16740SA

Panasonic Electronic Components

TRANS PNP 80V 1A MT-2

2SA16740SA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS PNP 80V 1A MT-2. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 4,789

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce170 @ 100mA, 2V
Power - Max1 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-2-A1
