2SA1309ASA

In Stock: 6,473

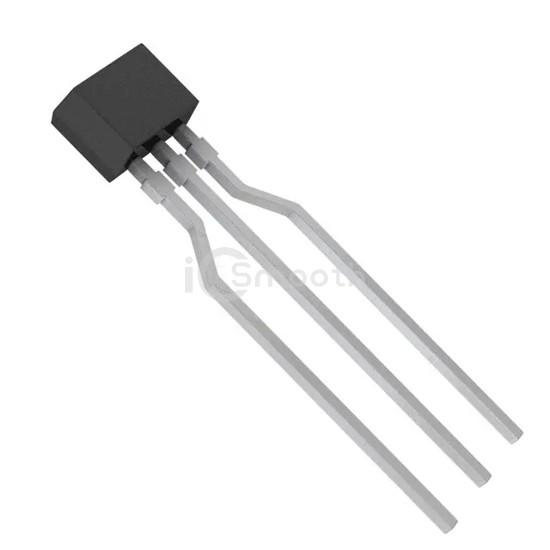

2SA1309ASA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SA1309ASA Panasonic Electronic Components
2SA1309ASA

Panasonic Electronic Components

TRANS PNP 50V 0.1A NS-B1

2SA1309ASA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS PNP 50V 0.1A NS-B1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 6,473

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)1µA
DC Current Gain (hFE) (Min) @ Ic, Vce290 @ 2mA, 10V
Power - Max300 mW
Frequency - Transition80MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageNS-B1
