ARV23N4HQ

In Stock: 9,786

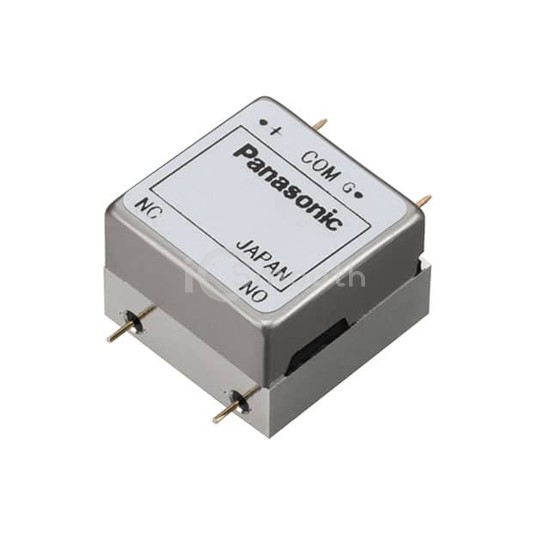

ARV23N4HQ - Panasonic Electric Works - RF Switches
REF: ARV23N4HQ Panasonic Electric Works
ARV23N4HQ

Panasonic Electric Works

IC RF SWITCH SPDT 18GHZ

ARV23N4HQ is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 18GHZ. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 4.5V, package / case Module, Pin Contacts, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 9,786

Specifications

16 parameters
Product StatusObsolete
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range0Hz ~ 18GHz
Isolation40dB (min)
Insertion Loss0.7dB (max)
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply4.5V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, Pin Contacts
Supplier Device Package-
