ARV23A24Q

In Stock: 4,482

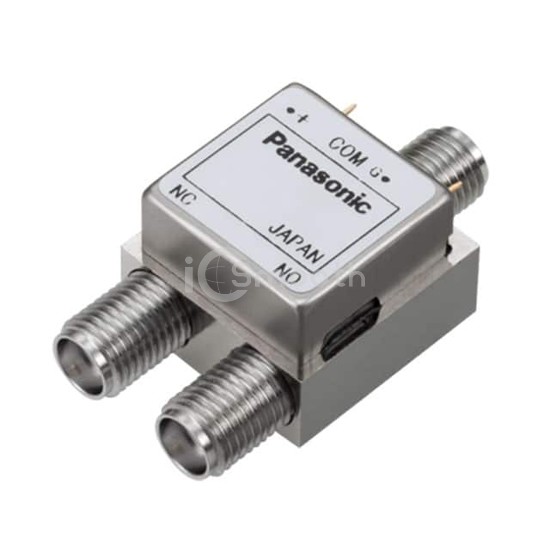

ARV23A24Q - Panasonic Electric Works - RF Switches
REF: ARV23A24Q Panasonic Electric Works
ARV23A24Q

Panasonic Electric Works

IC RF SWITCH SPDT 18GHZ MODULE

ARV23A24Q is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 18GHZ MODULE. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 24V, package / case Module, SMA Connectors, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 4,482

Specifications

16 parameters
Product StatusObsolete
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range0Hz ~ 18GHz
Isolation60dB (min)
Insertion Loss0.7dB (max)
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply24V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
