Name: ARV22N24
Brand: Panasonic Electric Works
SKU: ARV22N24
Availability: InStock

REF: ARV22N24 Panasonic Electric Works

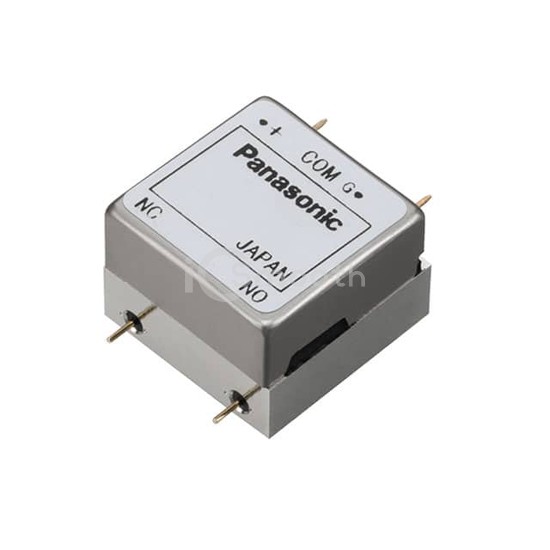

ARV22N24

IC RF SWITCH SPDT 18GHZ MODULE

ARV22N24 is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 18GHZ MODULE. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 24V, package / case Module, Pin Contacts, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 6,793

Specifications

16 parameters

Product Status	Obsolete
RF Type	General Purpose
Topology	Reflective
Circuit	SPDT
Frequency Range	0Hz ~ 18GHz
Isolation	40dB (min)
Insertion Loss	0.7dB (max)
Test Frequency	18GHz

P1dB	-
IIP3	-
Features	-
Impedance	50Ohm
Voltage - Supply	24V
Operating Temperature	-55°C ~ 85°C
Package / Case	Module, Pin Contacts
Supplier Device Package	Module
