ARV22A12

In Stock: 9,898

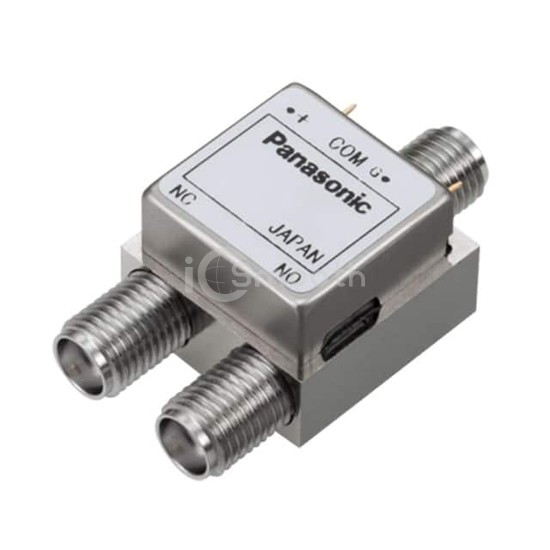

ARV22A12 - Panasonic Electric Works - RF Switches
REF: ARV22A12 Panasonic Electric Works
ARV22A12

Panasonic Electric Works

IC RF SWITCH SPDT 18GHZ MODULE

ARV22A12 is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 18GHZ MODULE. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 12V, package / case Module, SMA Connectors, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 9,898

Specifications

16 parameters
Product StatusObsolete
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range0Hz ~ 18GHz
Isolation60dB (min)
Insertion Loss0.7dB (max)
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply12V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
