ARD7204H

In Stock: 9,467

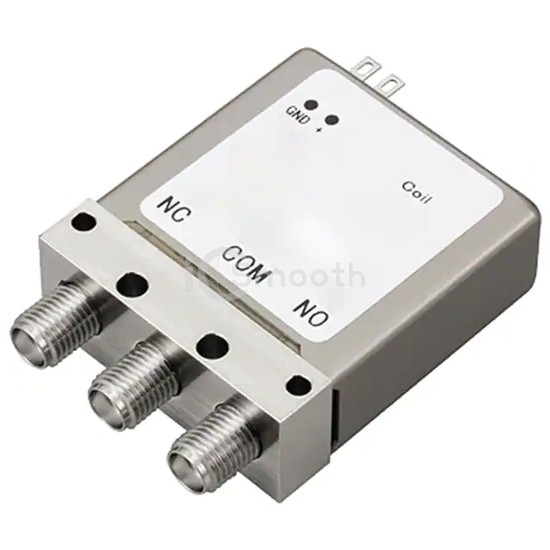

ARD7204H - Panasonic Electric Works - RF Switches
REF: ARD7204H Panasonic Electric Works
ARD7204H

Panasonic Electric Works

IC RF SWITCH SPDT 6GHZ

ARD7204H is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 6GHZ. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 4.5V, package / case Module, Pin Contacts, frequency range 0Hz ~ 6GHz.

Datasheet Request a Quote

In Stock: 9,467

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range0Hz ~ 6GHz
Isolation70dB (min)
Insertion Loss0.3dB
Test Frequency8GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply4.5V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, Pin Contacts
Supplier Device Package-
