ARD55105CQ

In Stock: 9,428

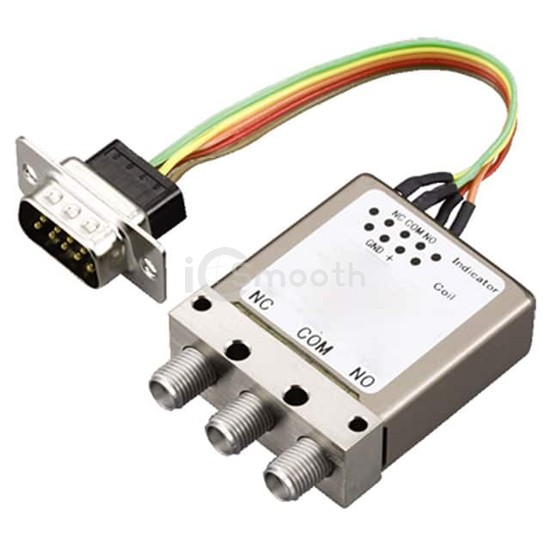

ARD55105CQ - Panasonic Electric Works - RF Switches
REF: ARD55105CQ Panasonic Electric Works
ARD55105CQ

Panasonic Electric Works

ARD COAXIAL SWITCH

ARD55105CQ is a RF Switches manufactured by Panasonic Electric Works. ARD COAXIAL SWITCH. Key specifications: operating temperature -55°C ~ 85°C (TA), voltage - supply 5V, package / case Module, Pin Contacts, frequency range 26.5GHz.

Datasheet Request a Quote

In Stock: 9,428

Tiered Pricing USD
1+ $713.6800 —
10+ $702.6120 -2% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCellular
Topology-
CircuitSPDT
Frequency Range26.5GHz
Isolation55dB (min)
Insertion Loss0.8dB (max)
Test Frequency26.5GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply5V
Operating Temperature-55°C ~ 85°C (TA)
Package / CaseModule, Pin Contacts
Supplier Device Package-
