ARD30012ZQ

In Stock: 7,569

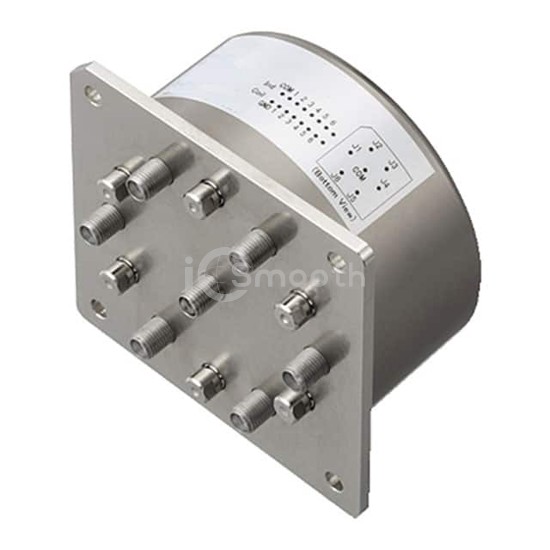

ARD30012ZQ - Panasonic Electric Works - RF Switches
REF: ARD30012ZQ Panasonic Electric Works
ARD30012ZQ

Panasonic Electric Works

IC RF SWITCH SP6T 13GHZ

ARD30012ZQ is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SP6T 13GHZ. Key specifications: operating temperature -55°C ~ 85°C, package / case Module, Pin Contacts, frequency range 1GHz ~ 13GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 7,569

Specifications

16 parameters
Product StatusObsolete
RF Type-
Topology-
CircuitSP6T
Frequency Range1GHz ~ 13GHz
Isolation70dB (min)
Insertion Loss0.3dB (max)
Test Frequency8GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / CaseModule, Pin Contacts
Supplier Device Package-
