ARD15124

In Stock: 2,278

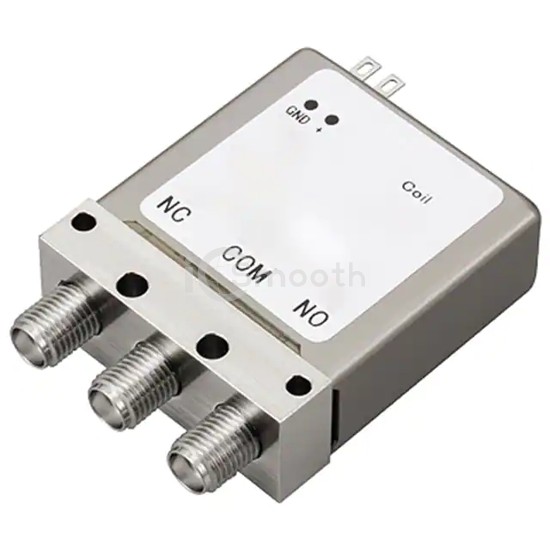

ARD15124 - Panasonic Electric Works - RF Switches
REF: ARD15124 Panasonic Electric Works
ARD15124

Panasonic Electric Works

IC RF SWITCH SPDT 18GHZ

ARD15124 is a RF Switches manufactured by Panasonic Electric Works. IC RF SWITCH SPDT 18GHZ. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 24V, package / case Module, Pin Contacts, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 2,278

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range0Hz ~ 18GHz
Isolation60dB (min)
Insertion Loss0.5dB (max)
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply24V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, Pin Contacts
Supplier Device Package-
