ARD1004HQ

In Stock: 4,875

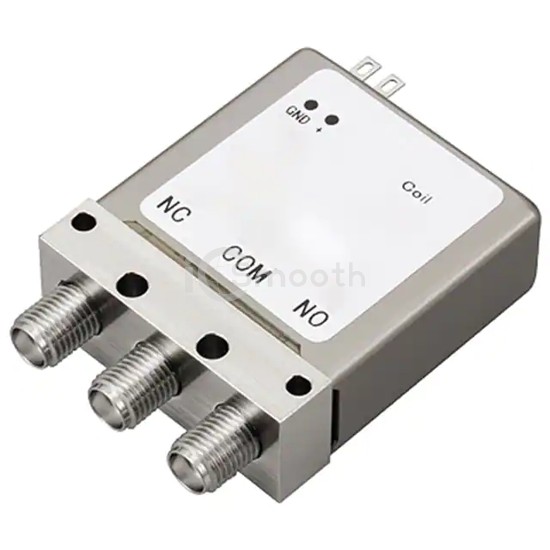

ARD1004HQ - Panasonic Electric Works - RF Switches
REF: ARD1004HQ Panasonic Electric Works
ARD1004HQ

Panasonic Electric Works

ARD COAXIAL SWITCH

ARD1004HQ is a RF Switches manufactured by Panasonic Electric Works. ARD COAXIAL SWITCH. Key specifications: operating temperature -55°C ~ 85°C (TA), voltage - supply 4.5V, package / case Module, Pin Contacts, frequency range 18GHz.

Datasheet Request a Quote

In Stock: 4,875

Specifications

16 parameters
Product StatusActive
RF TypeCellular
Topology-
CircuitSPDT
Frequency Range18GHz
Isolation60dB (min)
Insertion Loss0.5dB (max)
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply4.5V
Operating Temperature-55°C ~ 85°C (TA)
Package / CaseModule, Pin Contacts
Supplier Device Package-
