Name: APV2121S
Brand: Panasonic Electric Works
SKU: APV2121S
Price: 2.25 USD
Availability: InStock

REF: APV2121S Panasonic Electric Works

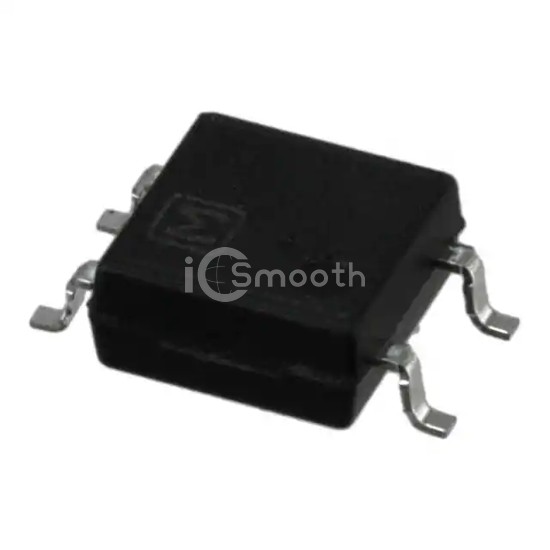

APV2121S

OPTOISOLATOR 2.5KV PHVOLT 4SMD

APV2121S is a Optoisolators - Transistor, Photovoltaic Output manufactured by Panasonic Electric Works. OPTOISOLATOR 2.5KV PHVOLT 4SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 4,199

Tiered Pricing USD

1+ $2.2500 —

10+ $1.6190 -28%

100+ $1.2417 -45%

500+ $1.0755 -52%

1,000+ $1.0214 -55%

2,000+ $0.9755 -57%

5,000+ $0.9255 -59%

10,000+ $0.8944 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	800µs, 100µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	8.2V
Current - Output / Channel	8µA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP
