Name: APV1122AZ
Brand: Panasonic Electric Works
SKU: APV1122AZ
Price: 3.95 USD
Availability: InStock

REF: APV1122AZ Panasonic Electric Works

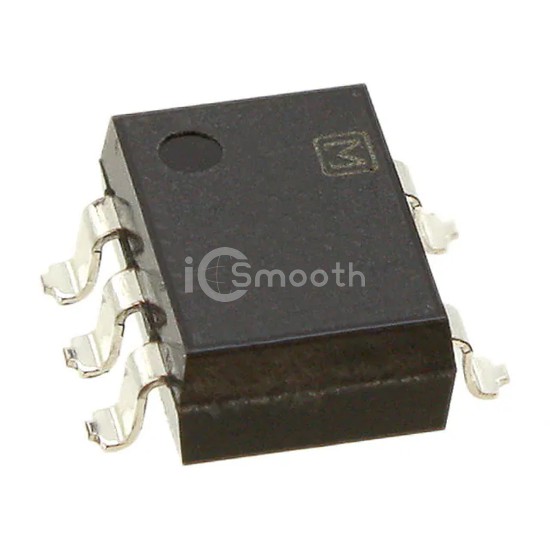

APV1122AZ

Panasonic Electric Works

OPTOCOUPLER PHOTOVO 6SMD

APV1122AZ is a Optoisolators - Transistor, Photovoltaic Output manufactured by Panasonic Electric Works. OPTOCOUPLER PHOTOVO 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 753

Tiered Pricing USD

1+ $3.9500 —

10+ $2.9090 -26%

100+ $2.2928 -42%

500+ $2.0228 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	400µs, 100µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	8.7V
Current - Output / Channel	14µA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Gull Wing
Supplier Device Package	6-DIP
