Name: APV1122AX
Brand: Panasonic Electric Works
SKU: APV1122AX
Price: 3.06 USD
Availability: InStock

REF: APV1122AX Panasonic Electric Works

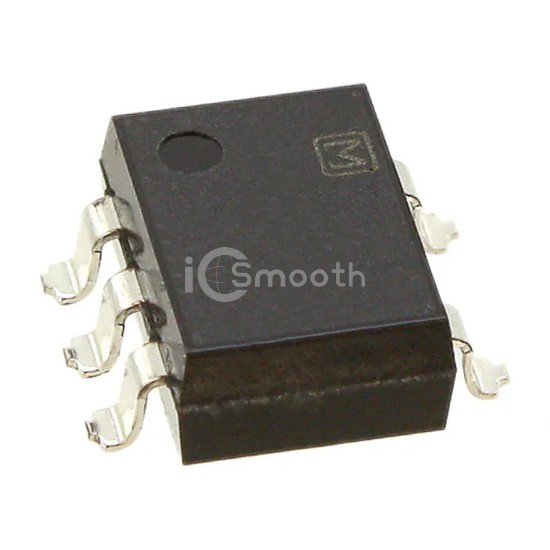

APV1122AX

Panasonic Electric Works

OPTOISOLTR 5KV PHVOLT 6-DIP SMD

APV1122AX is a Optoisolators - Transistor, Photovoltaic Output manufactured by Panasonic Electric Works. OPTOISOLTR 5KV PHVOLT 6-DIP SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.

Datasheet Request a Quote

In Stock: 912

Tiered Pricing USD

1+ $3.0600 —

10+ $2.7260 -11%

25+ $2.6032 -15%

50+ $2.5140 -18%

100+ $2.4278 -21%

250+ $2.3183 -24%

500+ $2.2388 -27% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	400µs, 100µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	8.7V
Current - Output / Channel	14µA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Gull Wing
Supplier Device Package	6-DIP
