APT1232W

In Stock: 537

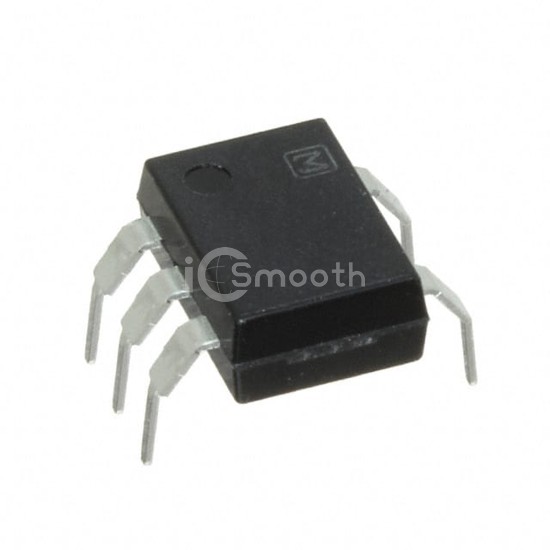

APT1232W - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1232W Panasonic Electric Works
APT1232W

Panasonic Electric Works

PHOTOTRIAC COUPLER 600V 6DIP

APT1232W is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. PHOTOTRIAC COUPLER 600V 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 6-DIP (0.400", 10.16mm), 5 Leads.

Datasheet Request a Quote

In Stock: 537

Tiered Pricing USD
1+ $1.6600 —
50+ $0.9654 -42%
100+ $0.8939 -46%
500+ $0.7664 -54%
1,000+ $0.7247 -56%
2,000+ $0.6894 -58%
5,000+ $0.6509 -61%
10,000+ $0.6270 -62% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package6-DIP
Approval AgencycUR, VDE
