APT1231A

In Stock: 9,709

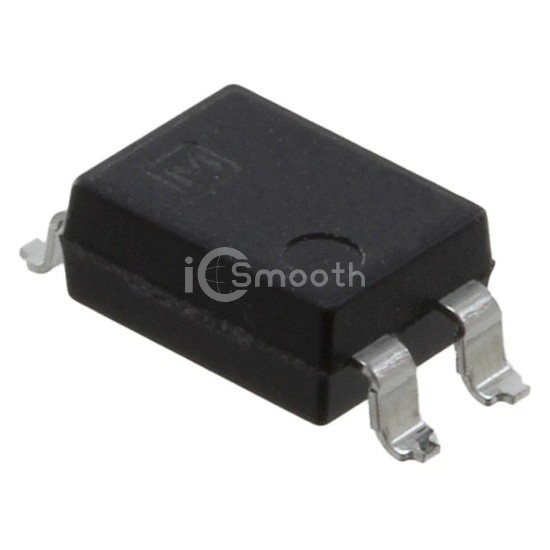

APT1231A - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1231A Panasonic Electric Works
APT1231A

Panasonic Electric Works

PHOTOTRIAC COUPLER 600V 4DIP

APT1231A is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. PHOTOTRIAC COUPLER 600V 4DIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,709

Tiered Pricing USD
1+ $1.9000 —
10+ $1.3580 -29%
100+ $1.0330 -46%
500+ $0.8897 -53%
1,000+ $0.8429 -56%
2,000+ $0.8033 -58%
5,000+ $0.7601 -60%
10,000+ $0.7332 -61% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation3750Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)50 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-DIP
Approval AgencycUR, VDE
