APT1231

In Stock: 878

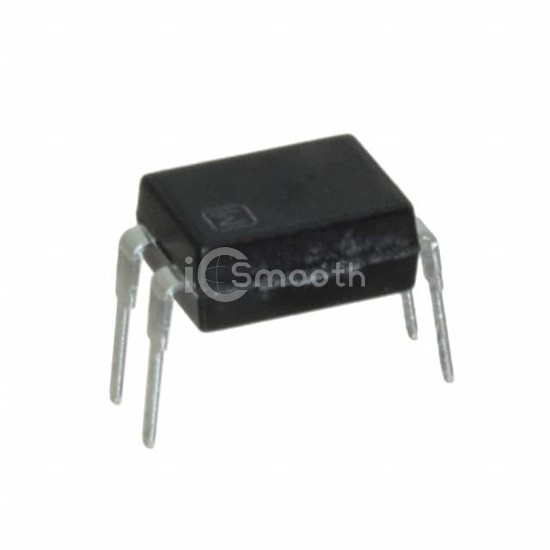

APT1231 - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1231 Panasonic Electric Works
APT1231

Panasonic Electric Works

PHOTOTRIAC COUPLER 600V 4DIP

APT1231 is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. PHOTOTRIAC COUPLER 600V 4DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 878

Tiered Pricing USD
1+ $2.1600 —
10+ $1.5500 -28%
100+ $1.1867 -45%
500+ $1.0265 -52%
1,000+ $0.9743 -55%
2,000+ $0.9300 -57%
5,000+ $0.8818 -59%
10,000+ $0.8517 -61% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation3750Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)50 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
Approval AgencycUR, VDE
