APT1222W

In Stock: 899

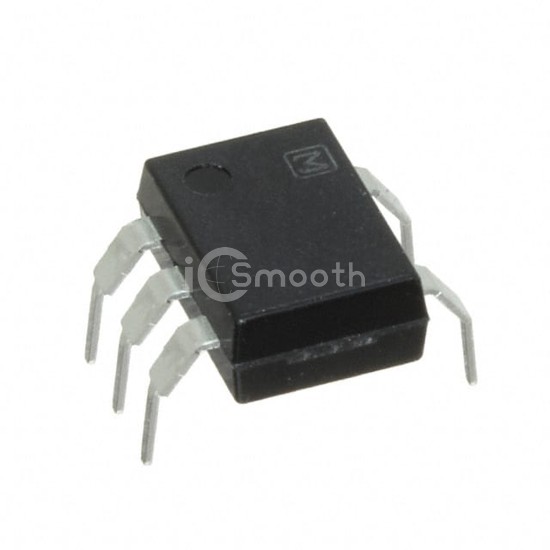

APT1222W - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1222W Panasonic Electric Works
APT1222W

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

APT1222W is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. OPTOISOLATOR 5KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 6-DIP (0.400", 10.16mm), 5 Leads.

Datasheet Request a Quote

In Stock: 899

Tiered Pricing USD
1+ $2.0100 —
50+ $1.1864 -41%
100+ $1.1016 -45%
500+ $0.9507 -53%
1,000+ $0.9015 -55%
2,000+ $0.8598 -57%
5,000+ $0.8143 -59%
10,000+ $0.7860 -61% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package6-DIP
Approval AgencycUR, VDE
