APT1221AX

In Stock: 400

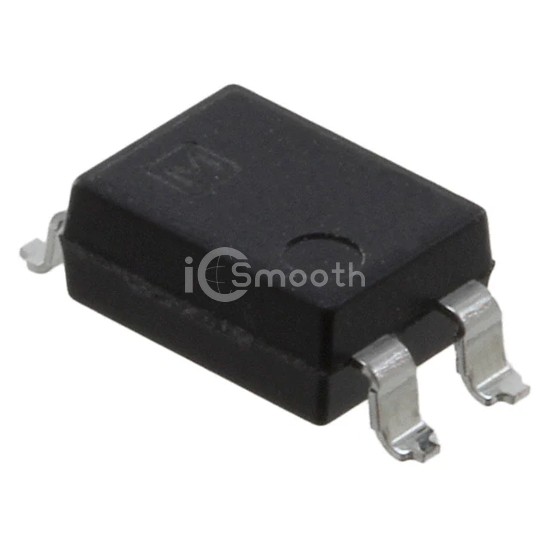

APT1221AX - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1221AX Panasonic Electric Works
APT1221AX

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 4DIP

APT1221AX is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. OPTOISOLATOR 5KV TRIAC 4DIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 400

Tiered Pricing USD
1+ $1.6600 —
10+ $1.1820 -29%
100+ $0.8939 -46%
500+ $0.7664 -54% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-DIP
Approval AgencycUR, VDE
