APT1212

In Stock: 38

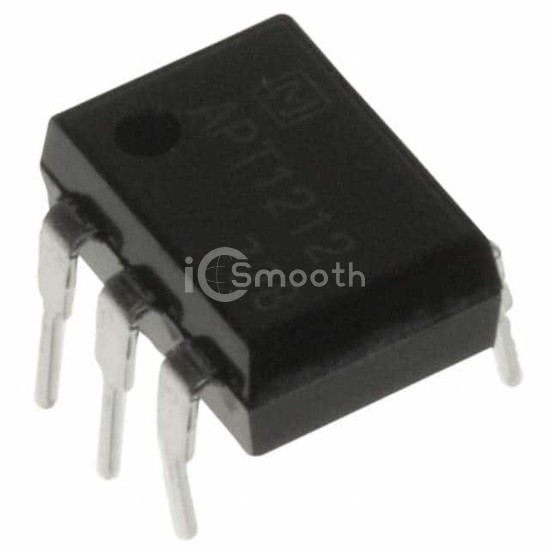

APT1212 - Panasonic Electric Works - Optoisolators - Triac, SCR Output
REF: APT1212 Panasonic Electric Works
APT1212

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

APT1212 is a Optoisolators - Triac, SCR Output manufactured by Panasonic Electric Works. OPTOISOLATOR 5KV TRIAC 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.21V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 38

Tiered Pricing USD
1+ $1.7800 —
50+ $1.0420 -41%
100+ $0.9659 -46%
500+ $0.8302 -53%
1,000+ $0.7859 -56%
2,000+ $0.7483 -58%
5,000+ $0.7074 -60%
10,000+ $0.6819 -62% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)500V/µs
Current - LED Trigger (Ift) (Max)10mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time100µs (Max)
Voltage - Forward (Vf) (Typ)1.21V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
Approval AgencycUR, VDE
