Name: WPH4003-1E
Brand: onsemi
SKU: WPH4003-1E
Availability: InStock

REF: WPH4003-1E onsemi

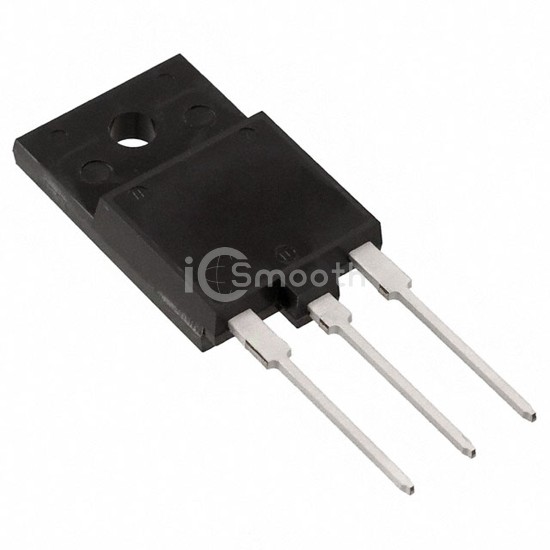

WPH4003-1E

MOSFET N-CH 1700V 2.5A TO3PF

WPH4003-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1700V 2.5A TO3PF. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 4,926

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10.5Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	850 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 55W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PF
Package / Case	TO-3P-3 Full Pack
