TND505MD-TL-E

In Stock: 15,880

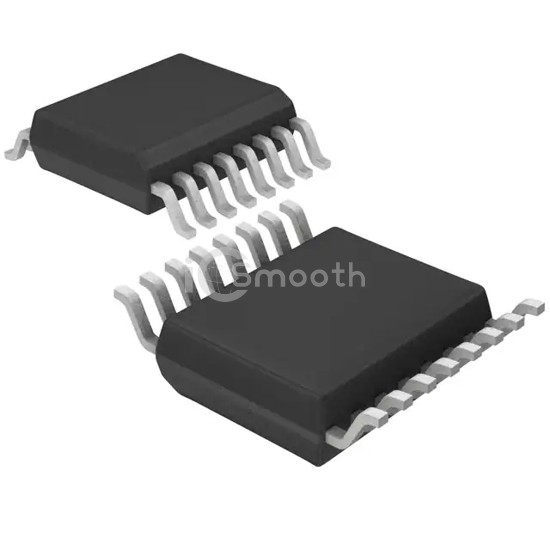

TND505MD-TL-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: TND505MD-TL-E onsemi
TND505MD-TL-E

onsemi

HALF BRIDGE DRIVER

TND505MD-TL-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. HALF BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 5V ~ 20V, package / case 16-SOIC (0.173", 4.40mm Width).

Request a Quote

In Stock: 15,880

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsAC Motors, Bulbs, DC Motors, General Purpose
InterfaceLogic
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel-
Current - Peak Output250mA, 500mA
Voltage - Supply5V ~ 20V
Voltage - Load600V (Max)
Operating Temperature-55°C ~ 150°C (TJ)
Features-
Fault Protection-
Mounting TypeSurface Mount
Package / Case16-SOIC (0.173", 4.40mm Width)
Supplier Device Package16-MFP
