TN6715A

In Stock: 2,568

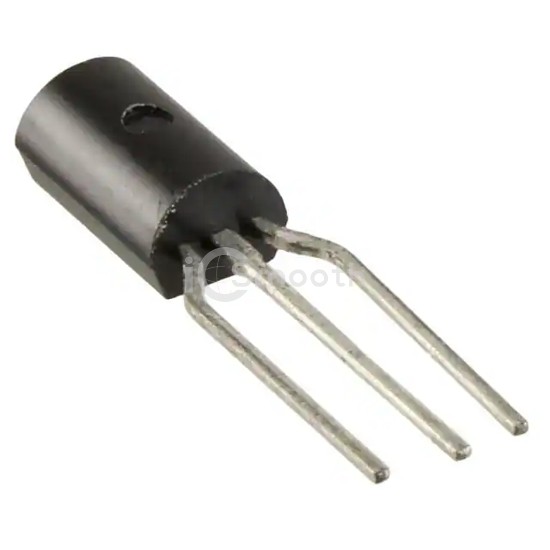

TN6715A - onsemi - Transistors - Bipolar (BJT) - Single
REF: TN6715A onsemi
TN6715A

onsemi

TRANS NPN 40V 1.5A TO226-3

TN6715A is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 40V 1.5A TO226-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 1.5 A.

Datasheet Request a Quote

In Stock: 2,568

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic500mV @ 100mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 1A, 1V
Power - Max1 W
Frequency - Transition-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
Supplier Device PackageTO-226-3
