TIG056BF - onsemi - Transistors - IGBTs - Single
REF: TIG056BF onsemi
TIG056BF

onsemi

IGBT 400V 30W TO220

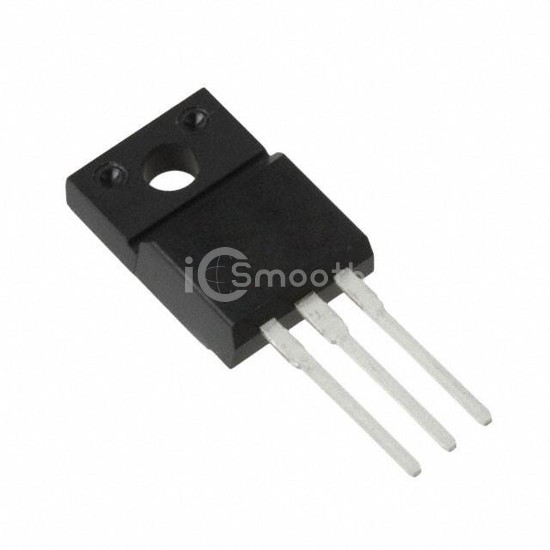

TIG056BF is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 400V 30W TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack, power - max 30 W.

Datasheet Request a Quote

In Stock: 8,015

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)430 V
Current - Collector (Ic) (Max)-
Current - Collector Pulsed (Icm)240 A
Vce(on) (Max) @ Vge, Ic5V @ 15V, 240A
Power - Max30 W
Switching Energy-
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C46ns/140ns
Test Condition320V, 240A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FI(LS)
