Name: SZESDR0502BT1G
Brand: onsemi
SKU: SZESDR0502BT1G
Price: 0.42 USD
Availability: InStock

REF: SZESDR0502BT1G onsemi

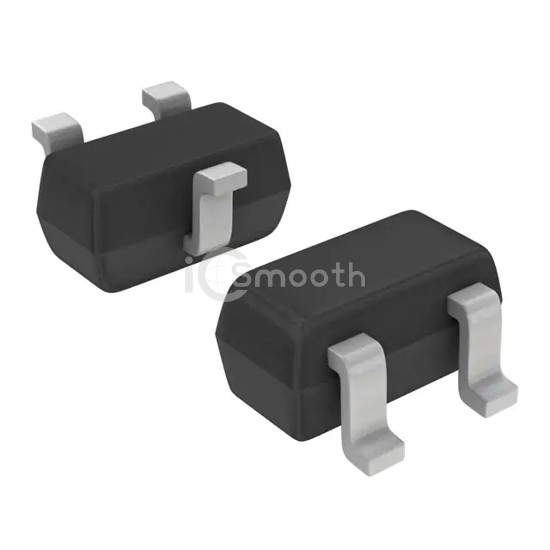

SZESDR0502BT1G

TVS DIODE 5VWM 15VC SC75 SOT416

SZESDR0502BT1G is a TVS - Diodes manufactured by onsemi. TVS DIODE 5VWM 15VC SC75 SOT416. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 1,727

Tiered Pricing USD

1+ $0.4200 —

10+ $0.2480 -41%

100+ $0.1090 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.8V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	20W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	0.5pF @ 1MHz, 0.25pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-75, SOT-416
Supplier Device Package	SC-75, SOT-416
