Name: SZESD8472MUT5G
Brand: onsemi
SKU: SZESD8472MUT5G
Price: 0.39 USD
Availability: InStock

REF: SZESD8472MUT5G onsemi

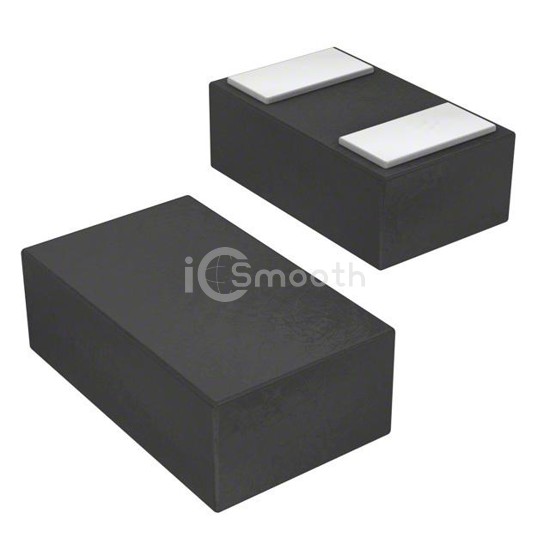

SZESD8472MUT5G

TVS DIODE 5.3VWM 14VC 2X3DFN

SZESD8472MUT5G is a TVS - Diodes manufactured by onsemi. TVS DIODE 5.3VWM 14VC 2X3DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 8,780

Tiered Pricing USD

1+ $0.3900 —

10+ $0.2770 -29%

100+ $0.1080 -72%

500+ $0.1000 -74%

1,000+ $0.0830 -79%

2,000+ $0.0815 -79%

5,000+ $0.0784 -80% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.3V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	17.8V
Current - Peak Pulse (10/1000µs)	2.4A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, RF Antenna
Capacitance @ Frequency	0.2pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-X3DFN (0.6x0.3) (0201)
