SVC236-TB-E-ON

In Stock: 3,057

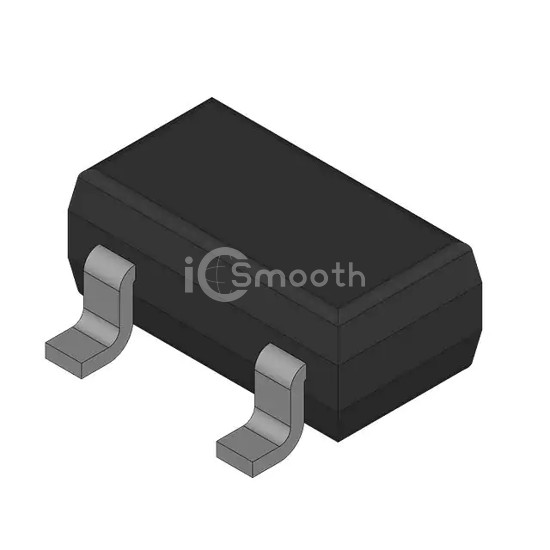

SVC236-TB-E-ON - onsemi - Diodes - Variable Capacitance (Varicaps, Varactors)
REF: SVC236-TB-E-ON onsemi
SVC236-TB-E-ON

onsemi

DIFFUSED JUNCTION TYPE SILICON V

SVC236-TB-E-ON is a Diodes - Variable Capacitance (Varicaps, Varactors) manufactured by onsemi. DIFFUSED JUNCTION TYPE SILICON V. Key specifications: mounting type Surface Mount, operating temperature 125°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 3,057

Specifications

11 parameters
Product StatusActive
Capacitance @ Vr, F16.84pF @ 6.5V, 1MHz
Capacitance Ratio5
Capacitance Ratio ConditionC1/C6.5
Voltage - Peak Reverse (Max)16 V
Diode Type1 Pair Common Cathode
Q @ Vr, F70 @ 3V, 100MHz
Operating Temperature125°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59-3/CP3
