STK681-200-E

In Stock: 1,379

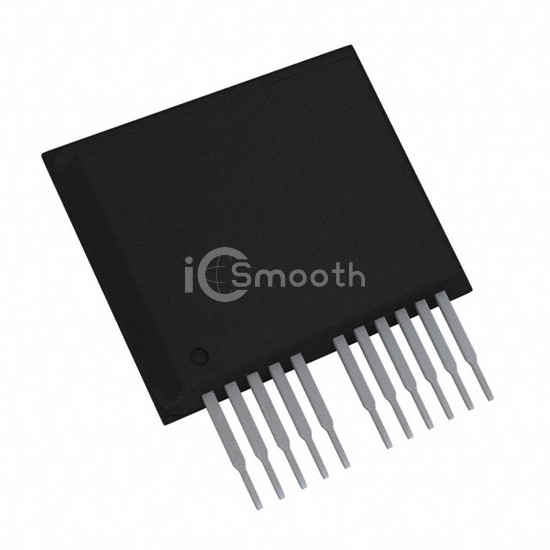

STK681-200-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: STK681-200-E onsemi
STK681-200-E

onsemi

IC HYBRID MOTOR DRIVER 11SIP

STK681-200-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC HYBRID MOTOR DRIVER 11SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 12-SIP, 11 Leads.

Datasheet Request a Quote

In Stock: 1,379

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET, IGBT
Rds On (Typ)-
Current - Output / Channel4.2A
Current - Peak Output-
Voltage - Supply4.75V ~ 5.25V
Voltage - Load10V ~ 42V
Operating Temperature150°C (TJ)
Features-
Fault Protection-
Mounting TypeThrough Hole
Package / Case12-SIP, 11 Leads
Supplier Device Package12-SIP
