STK611-721-E

In Stock: 336

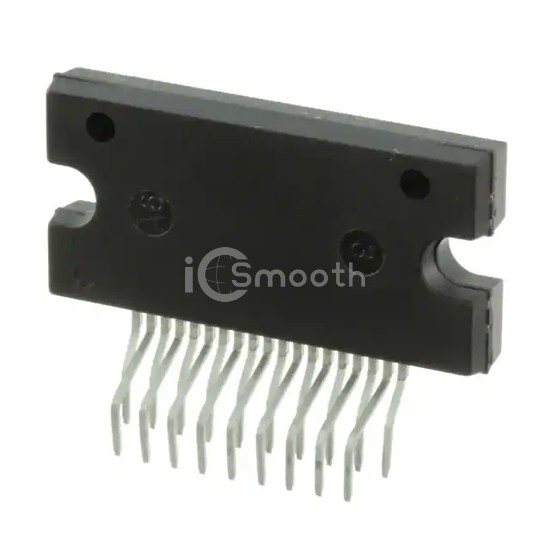

STK611-721-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: STK611-721-E onsemi
STK611-721-E

onsemi

IC BRIDGE DRIVER PAR SIP-19

STK611-721-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR SIP-19. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 19-SSIP Formed Leads.

Datasheet Request a Quote

In Stock: 336

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel2A
Current - Peak Output4A
Voltage - Supply12.5V ~ 17.5V
Voltage - Load400V (Max)
Operating Temperature-20°C ~ 150°C (TJ)
Features-
Fault ProtectionUVLO
Mounting TypeThrough Hole
Package / Case19-SSIP Formed Leads
Supplier Device Package19-SIP
