STK581U3C2D-E

In Stock: 8,665

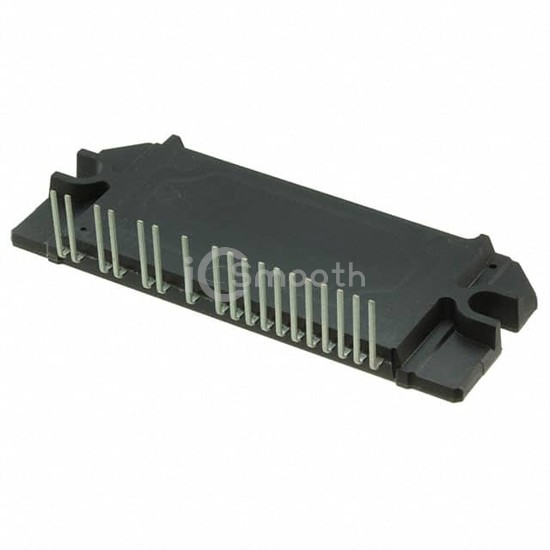

STK581U3C2D-E - onsemi - PMIC - Full, Half-Bridge Drivers
REF: STK581U3C2D-E onsemi
STK581U3C2D-E

onsemi

IC MOTOR DRIVER 22SIP

STK581U3C2D-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC MOTOR DRIVER 22SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 22-SIP, 18 Leads, Formed Leads.

Datasheet Request a Quote

In Stock: 8,665

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel30A
Current - Peak Output45A
Voltage - Supply12.5V ~ 17.5V
Voltage - Load450V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionCurrent Limiting, UVLO
Mounting TypeThrough Hole
Package / Case22-SIP, 18 Leads, Formed Leads
Supplier Device Package22-SIP
